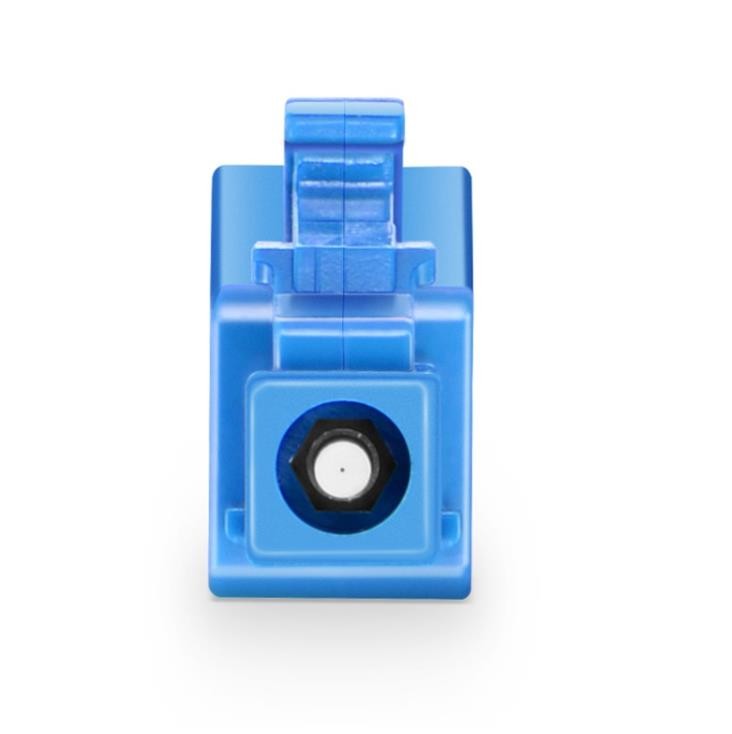

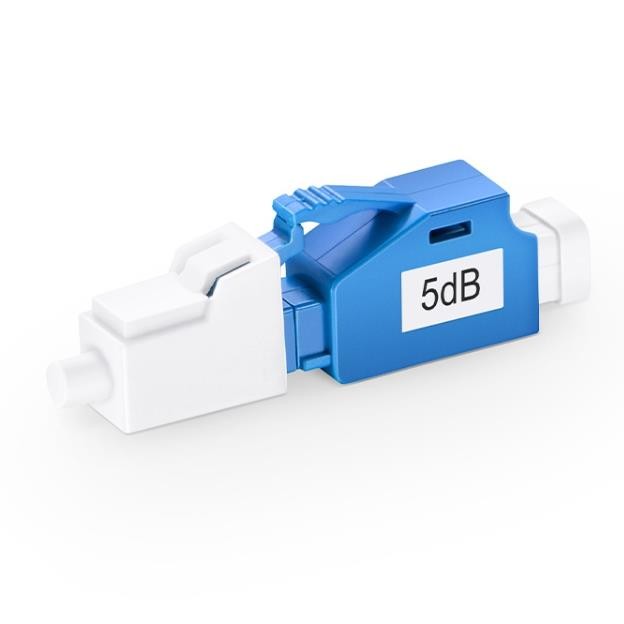

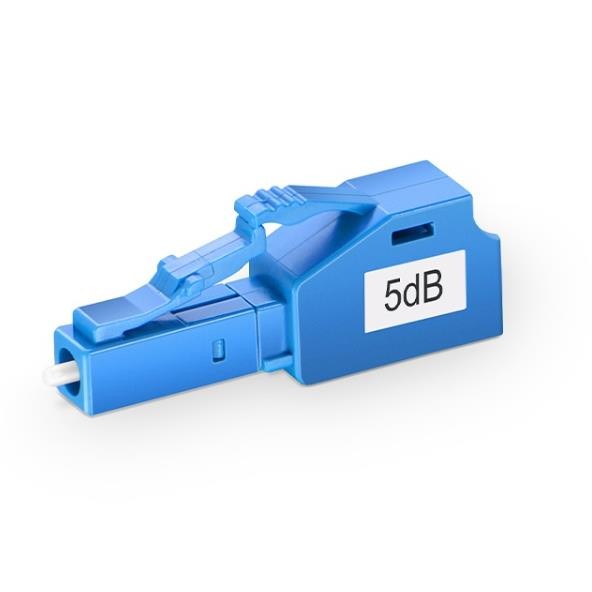

LC/UPC Singlemode Fixed Optical Attenuator Male Female
Product Details
| Connector Type | LC/UPC | Mode | Singlemode |
|---|---|---|---|
| Type | Simplex | Ferrule Type | Zirconia Ceramic |
| Housing | Plastic | Attenuation | 5dB |
| Highlight | Singlemode Fixed Optical Attenuator,Fixed Optical Attenuator Male Female,LC/UPC Fixed Optical Attenuator |
||
Product Description
LC/UPC Male to Female Singlemode Fiber Attenuator, Fixed Type
As optical passive devices, Dierite attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
Specifications
Fiber Connector
LC/UPC
Ferrule Type
Zirconia Ceramic
Connector Gender
Fixed Male to Female
Transfer Mode
Singlemode
Attenuation
5dB
Operating Wavelength(nm)
1260~1620(SM)
Attenuation Accuracy
±0.5dB
Return Loss
≥50dB
Polarization Dependent Loss
≤0.2dB
Max Optical Input Power
200mW
Durability
500 times
Humidity
95%RH
Operating Temperature Range
-40 to 75°C (-40 to 167°F)
Storage Temperature Range
-40 to 85°C (-40 to 185°F)
