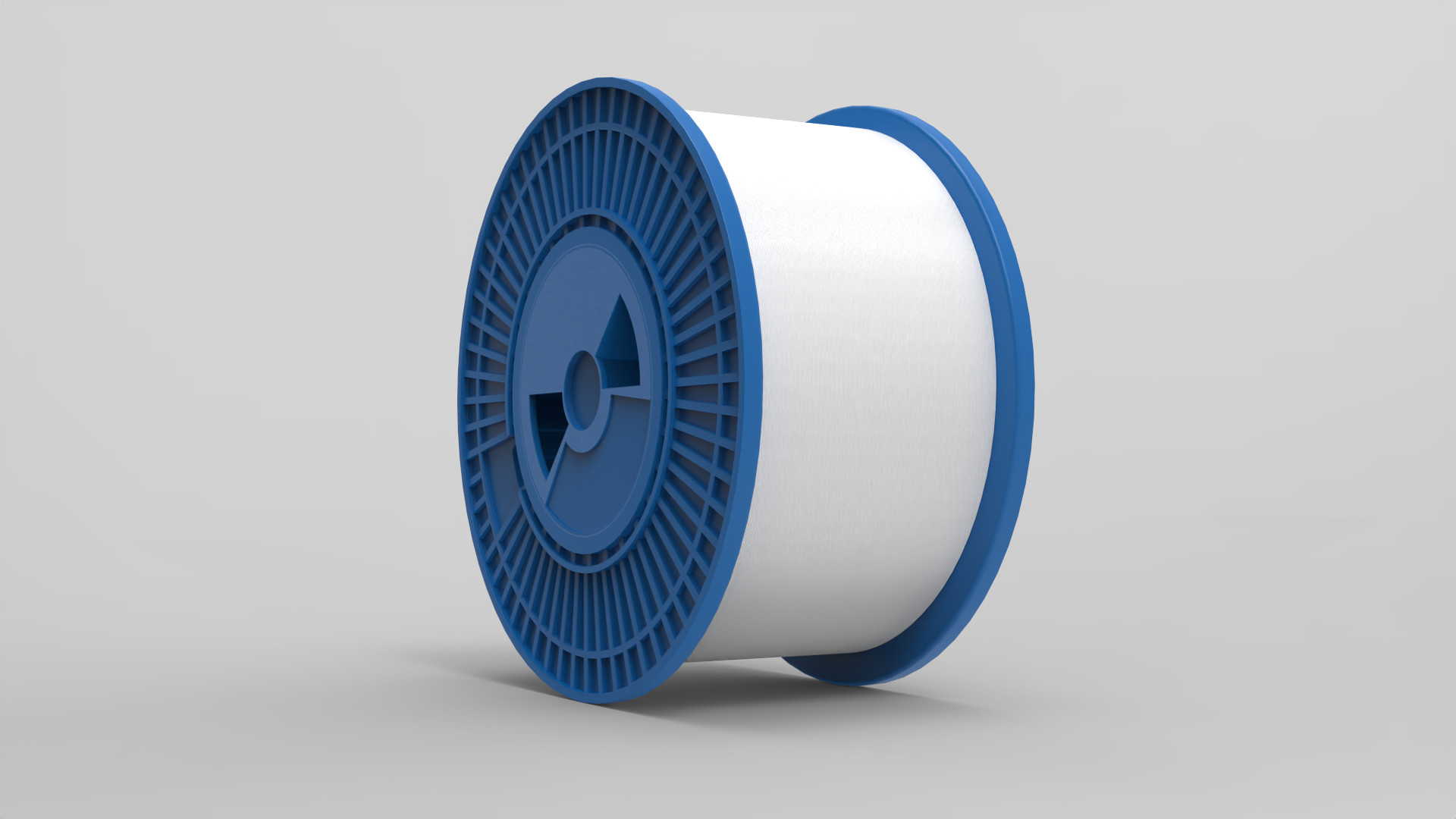

PVC LSZH TBF Tight Buffered Fiber Cable JV/JH CE ROHS
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Type | B1.3=G652D B6A1=G657A1 B6A2=G657A2 OM1=62.5/125 OM2=50/125 OM3= Maxband*150 OM3=Maxband*300 OM4= Maxband*550 OM5= Maxband*550 | Jacket Color | Yellow Orange Aqua Customized |
|---|---|---|---|
| Jacket Material | PVC LSZH | ||
| Highlight | TBF Tight Buffered Fiber Cable,PVC LSZH Tight Buffered Fiber Cable,Tight Buffered Fiber Cable JV/JH |
||
Product Description
TBF Tight Buffer Optical Fiber(JV/JH)
Tight buffer optical fiber is a product in which a layer of buffer material is extruded outside the coated optical fiber. By selecting high-quality optical fiber, using special equipment, and matching with precision molds, the product has excellent performance.
Product feature
● Uniform outer diameter of tight-buffered fiber,Excellent stripping performace.
● Good flame retardant properties.
● Stable high and low temperature performance.
● The geometric size of the optical fiber is consistent.
|
Fiber coating diameter (µm) |
Tight buffer fiber diameter (µm) |
Tight buffer fiber weight (kg/km) |
Tensile Strength Long/short term |
Crush resistance Long/short term |
Bending Radius Dynamic/static |
Peel strength (N) |
| 245±7 | 900±50 | 0.9 | 3/6 | 100/500 | 20D/10D | ≤13.3 |
| Fiber type | Attenuation |
Full injection bandwidth |
Effective mode bandwidth | 10G Ethernet link length |
Minimum bend radius |
|||
| Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
| Normal | Max | Normal | Max | |||||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 16 |
| G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
| G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 | --- | --- | 30 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 | --- | --- | 30 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
| Fiber type | B1.3=G652D,B6A1=G657A1,B6A2=G657A2,A1=50/125,A1b=62.5/125, OM3= Maxband*150,OM3=Maxband*300,OM4= Maxband*550,OM5=Maxband*550 | |
| Tight buffer fiber material | V-PVC Z-LSZH H_HYytrel N-Nylon F:PVDF | |
| Tight buffer fiber color | Refer to Chromatogram | |
| Outer jacket color | Refer to Chromatogram | |
| Marking&package | Per customer's request or factory standard | |
Note:
Delivery length can be customized according to the customer's requirements. Marking &Package is factory standard or per customer's request.
